Description

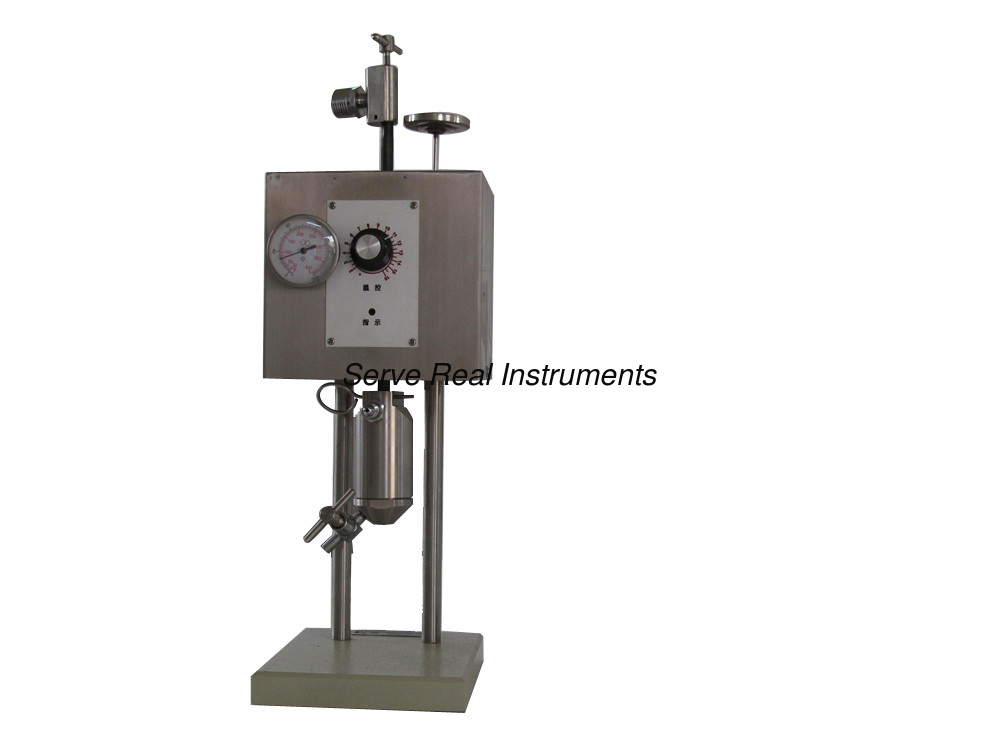

The HTHP Filter press is used to simulate the drilling fluids and cement mortar filtration quantity and to make the filter cake formed after filtration under HTHP condition.
Features
Integrate the Heating and control system as a body
Main parts made of quality SUS, easy operation, mobile, durable in use
High temperature accuracy, good repeatability
Technical specifications
Power supply |
220V±5% 50Hz |
Heating power |
400W |
Max working temperature |
RT-150℃ |
Drilling fluids cup max working pressure |
4.2Mpa |
Filtration fluids max working pressure |
0.7Mpa |
Valid filtration area |
22.6cm2 |
Air source |
Nitrogen, carbon dioxide(not include oil, water and other impurity) |
Mortar cup capacity |
175ml |
Difference
Model |
Difference |
GGS42-1 model |
1. Drilling fluids cup no through hole 2. Heating jacket has no heating thermal insulation layer 3. For general 42 type filtration test |
GGS42-2 model
|
1. Drilling fluids cup has through hole 2. Heating jacket has heating thermal insulation layer 3. SUS housing 4. Can do cement mortar test
|
