| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO 9001:2008 |
| Model Number: | ZY-YM |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 5000-10000USD/Set |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Paypal, L/C, Western Union, MoneyGram |
| Supply Ability: | 50Sets/Month |
| Power Supply: | AC380V, 50Hz | Compression Load: | 30T/40T/60T/80T/100T/120T/200T |
|---|---|---|---|
| Application: | Sample Preparation Equipment | Mould: | Steel, Plastic, Boric Acid Etc. |
Magnetic field distribution measuring system Magnetic filed test equipment

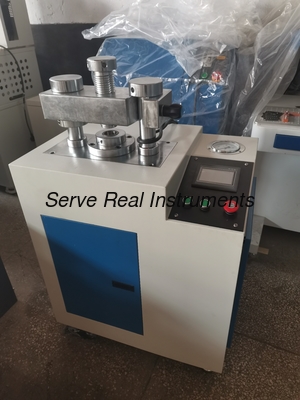

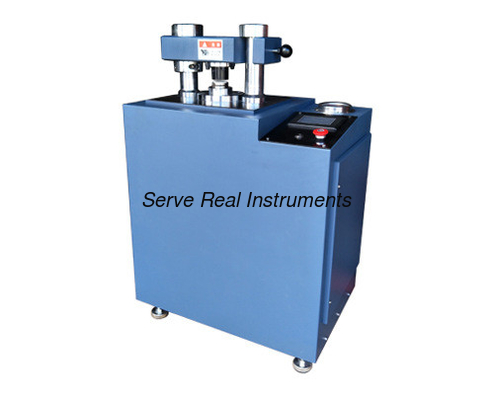

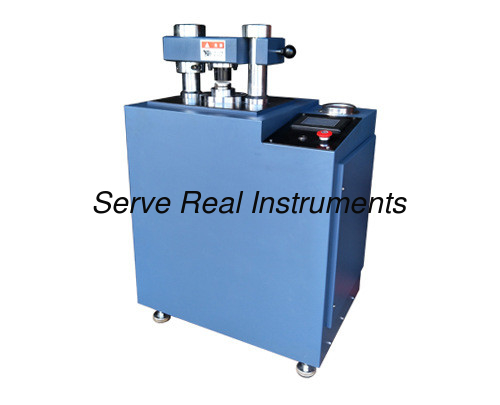

The hydraulic press is used for molding of various kinds of solid samples which are used for XRF spectrum analysis, it’s suitable for sample molding of metal, cement,silicic acid, batteries, ceramics etc., it’s a kind of very common equipment in analytical laboratory.
Suitable for used with mold type of Boric acid ring, steel ring, aluminum cup, plastic ring;
Touch screen operation, PLC programmable, pressure-holding time adjustable
1-key operation, automatic finishing of molding, extrusion, automatic reset
Easy operation, better performance, compact size
| Application | Sample molding for spectrum analysis |
| Applications | Chemical / Synthetic Materials, Geology / Metallurgy, Construction Materials, Environment / Recycling, Glass / Ceramic |
| Control mode | Touch screen operation, PLC control |
| Mold type | Boric acid / steel ring / aluminum cup / plastic ring / low pressure polyethylene |
| Mold size | Steel ring 40mm/35mm |
| Boric acid ring 40mm/34mm | |
|
Plastic cup 40mm/34mm(normal size) Other size optional: 38mm/32mm,32mm/28mm,29.2mm/24mm,25.2mm/20mm,19.2mm/14mm |
|
| Max pressure | 40T |
| Optional pressure | 30T/40T/60T/80T/100T/120T/200T(or customized made) |
| Dwell time | 0~999s adjustable |
| Max stroke | 100mm |
| Column space | 220mm |
| Overall size | 580×550×1100(mm) |
| Net weight | Approx 265kg |
| Power supply | AC 380V±5%,50Hz/60hz,3 phase 5 wire |
| Motor power | 1.1KW |
| Working environment | Recommended working environment: RT~40℃;If the operation temperature is below minus or in plateau area, please inform the manufacturer in advance. |
Customer can select any one of the below 4 types when ordering, they are: 1. Plastic ring 2. Steel ring 3. Aluminum cup 4. Boric acid
