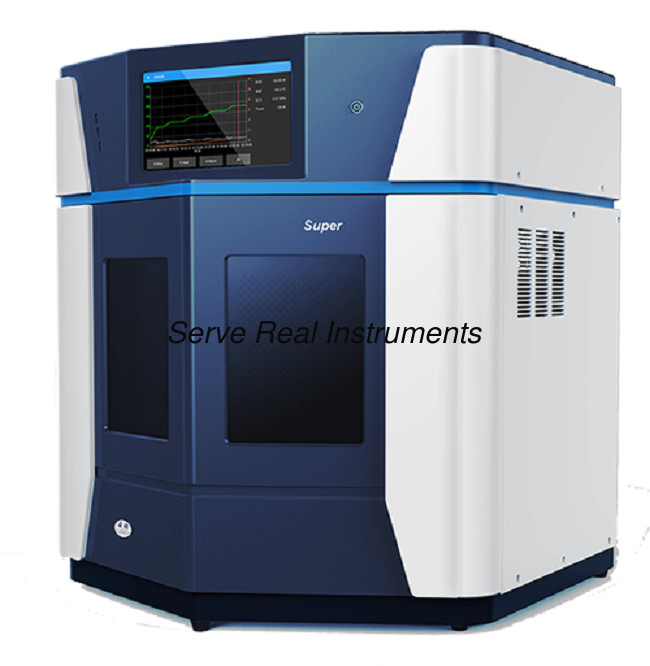

Intelligent Microwave digestion system 14 station scientific instrument

Advantages

Unique Uni-Turn technology, 360° continuous rotation, coaxial coaxial uniform rotating turntable, which solves the problems of uneven microwave emission, serious motor wear, and wire breakage caused by the reciprocating rotation of the turntable.

High-throughput sample processing, which can process up to 14 100ml high-pressure digestion tanks at the same time to meet the needs of large-scale sample processing. The 40-position microwave digestion rotor can also be upgraded.

The instrument has temperature and pressure dual control, pressure control, temperature control, 3 kinds of modules for users to choose.

Infrared whole tank temperature measurement, auxiliary contact PT1000 for temperature control, fine control of microwave power

Microwave input power/output power is 2000W continuously and automatically adjustable; double magnetron frequency conversion system; professional magnetron is used to ensure uniform microwave in the furnace cavity and stable operation of the instrument for a long time;

Uniformity: 360° coaxial coaxial rotation of the turntable at a uniform speed, so that the sample is heated more evenly in the microwave environment, which greatly increases the precision of the instrument, the consistency of sample digestion and the accuracy of detection.

Software control system

-- Equipped with Android operating system 10-inch color LCD capacitive touch screen (resolution 1920×1200), quad-core 1.2GHz processor, 3G running memory, 32G memory, USB interface, real-time display of temperature, time, microwave power, pressure in the reaction system The instrument can set 20 reaction stages step by step, and the reaction data group can be stored according to the requirements;

--The host computer software for playing back the experimental data is randomly equipped, which can be connected to the PC host computer in real time through the local area network (WiFi), and the real-time temperature, pressure, microwave power and other experimental parameters can be viewed remotely, which is convenient for analyzing the experimental results. The abnormal situation will be alarmed, and the instrument can be shut down remotely. Equipped with a remote control device to stop the response from a long distance in an emergency state that is not connected to the Internet;

--The real-time monitoring interface of the 12-megapixel high-definition camera is displayed on the same screen as the curves and parameters; it can record and intercept the real reaction in the cavity in real time, and can import it into the computer through the U disk for playback;

--Set the reaction parameters in sections, a total of 20 sections, and display the temperature and pressure curve in real time. Each working section can arbitrarily set the microwave power, pressure, temperature, and time, and the set parameters can be stored as required; the experimental parameters can be exported and stored on the computer. Play back the temperature and pressure line in the middle to view the experimental parameters at any time;

Specifications
