| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001:2000 |
| Model Number: | QPAD |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 2000-4000USD/set |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, PAYPAL |
| Supply Ability: | 200 sets/month |
| Minimum Order Quantity: | 1set |
| Function: | Samples Processing | Category: | General Lab |
|---|---|---|---|
| Force: | 20KN TO 160KN | Operation: | Pneumatic Hydraulic |

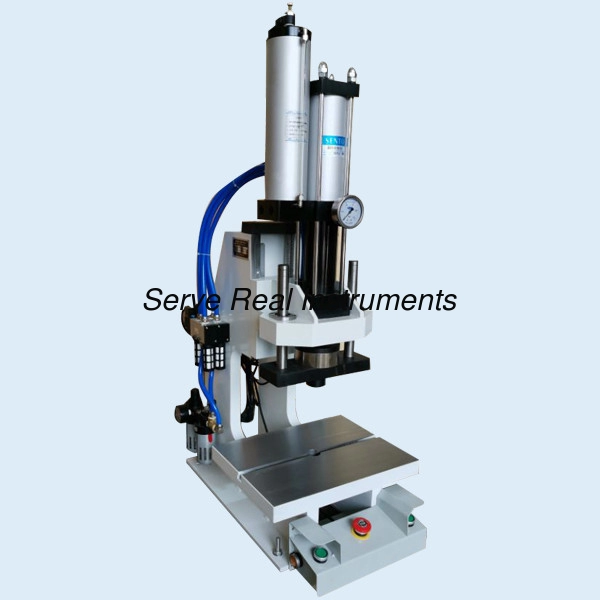

This press is suitable for assembly, blanking, cutting, forming, overturning, pressing, riveting, punching, calibration and embossing in many industries such as automobile manufacturing, electronics, electrical appliances, hardware, electromechanical, clocks, instruments, etc. .
1. Gantry frame structure, features good rigidity, high strength, reliable quality, convenient for picking and placing workpieces.
2. One-time processing and molding of equipment fundamentals
3. The worktable and the upper mold fixing plate adopt double T-slots to install and fix the mold, features convenient, safe and reliable.
4. Double guide column structure, which plays four functions of guidance, anti-rotation, stroke adjustment and spring return.
5. Driven by a gas-liquid booster cylinder, the workpiece can be pressurized at any position of the stroke.
6. The electronic control system can set the working cycle and pressure holding time, also record the working times
| Model | Under 0.7Mpa air source pressure | Total stroke/mm | Force stroke/mm | Main shaft span/mm | Table hole/mm | Table dimensions/mm | Machine base size/mm | T slot width/mm | Installation hole/mm | Hole distance/mm | Net weight/kg | |||
| Working pressure/kN | Fast forward force/ kN | Back force/ kN | ||||||||||||
| C | E | L*W | U*H | G | R | N*V | ||||||||
| QPAD-02-M/F | 20 | 1.6 | 1.1 | 100 | 10 | 240 | 60 | 360*260 | 640*680 | 12 | 14 | 260*450 | 180 | |
| QPAD-03-M/F | 30 | 1.6 | 1.1 | 100 | 10 | 240 | 60 | 360*260 | 640*680 | 12 | 14 | 260*450 | 180 | |
| QPAD-05-M/F | 50 | 1.6 | 1.1 | 100 | 10 | 240 | 60 | 360*260 | 640*680 | 12 | 14 | 260*450 | 180 | |
| QPAD-08-M/F | 80 | 3.5 | 2.3 | 100 | 10 | 240 | 60 | 400*280 | 640*680 | 12 | 14 | 260*450 | 240 | |
| QPAD-10-M/F | 100 | 5.4 | 4 | 100 | 10 | 230 | 80 | 420*340 | 690*810 | 14 | 14 | 300*500 | 350 | |
| QPAD-16-M/F | 160 | 5.4 | 4 | 100 | 10 | 230 | 80 | 420*340 | 690*810 | 14 | 14 | 300*500 | 355 | |
A-(With collet, no anti-rotation); B-(dual guide column, anti-rotation, with collet); C(dual guide column, upper template, anti-rotation, Limit adjustment nut, T slot )
| Type | Index | QPAD-02-M/F | QPAD-03-M/F | QPAD-05-M/F | QPAD-08-M/F | QPAD-10-M/F | QPAD-16-M/F |
| A | Installation hole/mm | Ø16*30 | Ø16*30 | Ø16*30 | Ø20*40 | Ø30*40 | Ø30*40 |
| Closed height/mm | 220-360 | 220-360 | 220-360 | 220-370 | 210-370 | 210-370 | |
| B | Installation hole/mm | Ø16*30 | Ø16*30 | Ø16*30 | Ø20*40 | Ø30*50 | Ø30*50 |
| Closed height/mm | 210-350 | 210-350 | 210-350 | 210-360 | 210-370 | 210-370 | |
| C | Upper template size/mm | 232*165 | 232*165 | 232*165 | 250*170 | 310*220 | 310*220 |
| T slot include angle/mm | 90° | 90° | 90° | 90° | 90° | 90° | |
| T slot width/mm | 12 | 12 | 12 | 12 | 12 | 12 | |
| Closed height/mm | 210-350 | 210-350 | 210-350 | 210-360 | 200-360 | 200-360 |
