Place of Origin: | Jiangsu |
Brand Name: | SRI |
Certification: | ISO 9001:2008 |
Model Number: | XC-PL01 |
Minimum Order Quantity: | 1set |
---|---|
Price: | 1000-2000USD/Set |
Packaging Details: | Standard exporting package |
Delivery Time: | 10days |
Payment Terms: | T/T, Paypal, Western Union, LC |
Supply Ability: | 200Sets/Month |

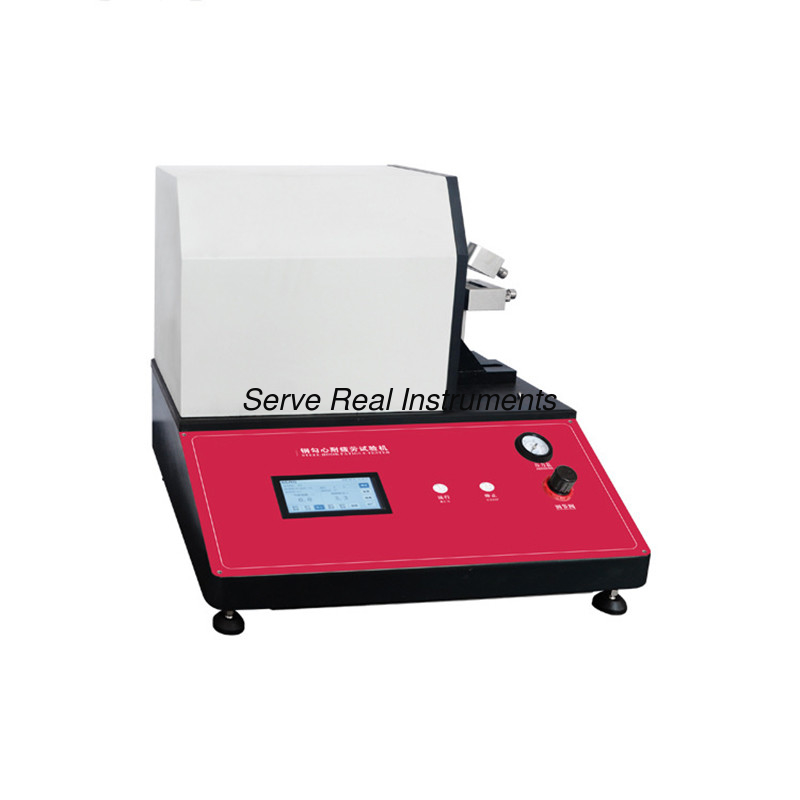

Steel Shank Fatigue Tester ISO 18895 Shoe material test equipment
Instrument Usage
Fatigue resistance test of hook core used to reinforce the waistline of footwear.
Standards
GB/T3903.35-2008, ISO 18895:2006 "Footwear hook test methods - Fatigue resistance".
Product Features
1. The core transmission mechanism adopts imported precision guide rails.
2. Color touch screen display and control, Chinese and English interface, menu style operation mode.
3. The core control components are composed of a multifunctional motherboard using a 32-bit microcontroller from Italian company.
Technical parameter
1. The distance between the upper end face of the lower clamp and the center of the upper clamp is (70 ± 2) mm.
2. The height of the lower clamp jaw: 32mm.
3. Upper fixture clamp load force value: (49 ± 2) N.
4. The frequency of reciprocating operation of the upper fixture clamp is adjustable from 0 to 250 times/min, and the test requires a setting of 240 times/min.
5. Set the number of runs: (0-99999) times.
6. Control method: Large screen color touch screen display control
7. The steel hook core sample can be clamped in various sizes of "-" and "Y" shaped steel hook cores.
8. Power supply: AC220V, 50Hz.
Configuration List
1. 1 host
2. 2 fuses
3. 2 shock absorbing silicone pads
4. 1 product qualification certificate
5. 1 product user manual
6. 1 delivery note
7. 1 acceptance certificate
8. 1 product brochure
