Place of Origin: | China mainland |
Brand Name: | SRI |
Certification: | Exd IIC T6 Gb IP68 |
Model Number: | KY003 |
Minimum Order Quantity: | 1set |
---|---|
Price: | 2000-3000USD |
Packaging Details: | Wooden case |
Delivery Time: | 10 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100set per month |
Protection Degree: | IP66 | Housing: | Stainless Steel |
---|---|---|---|
Installation: | Installation Of Semi-fixed Gimbal, Fixed Bracket, Base, Column | Communication: | Video, Optical |
Application: | Industry Online Monitoring | Cusomized: | Yes |
Introduction

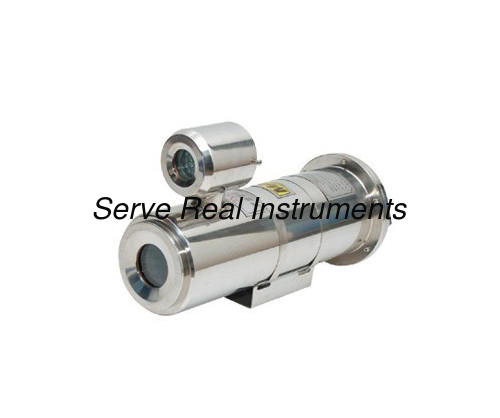

This Mine camera is an improved explosion-proof monitoring equipment based on the original product. It combines many advantages. With the mature design concept, the function and operability of mine monitoring equipment have been effectively improved. The product can be used alone in mines and mines with flammable and explosive gases.
Built-in ultra-low illumination camera or infrared camera enable good monitoring effect under low light or no light conditions.
-Stainless steel structure, can work stably for a long time under the temperature condition of 0℃ to +40℃.
-The window is made of special tempered flat glass, guarantee durable in use and ensures the clarity of the picture quality.
-Ethernet signal transmission improves the flexibility of system application; The optical transmission guarantees the signal quality and enable longer transmission distance
-With 2 outlet holes, explosion-proof flexible pipe or armored cable can be used for explosion-proof electrical connection.
-Easy to install, can choose semi-fixed gimbal, fixed bracket, base, upright and so on.
Features
-Two transmission methods available: network optical signal transmission and video optical signal transmission
-Applied in high-risk places such as coal mines and mines
-Made of stainless steel
-The camera with fixed focus lens can be installed
-The window is made of strong tempered flat glass
-There are 2 outlet holes at the rear of the shield
-Protection grade IP66
Specifications
Material: Stainless steel 304 or 316L
Protection class: IP68
Shield inner cavity size for use: 120(L) x 70(W) x 75(H)mm (The above lengths already include video output. BNC seat is recommended to install an integrated camera)
Horizontal rotation: 360°
Vertical rotation: +90°~ -90°
Horizontal rotation speed: 10°/S
Vertical rotation speed: 10°/S
Unit weight: 25Kg
Shipping weight: 27Kg
Installation method Fixed bracket, base, column
Power supply: 220VAC / 110VAC / 24VAC , ±10%
Working current:
<250mA (220VAC)
<500mA (110VAC)
<2A (24VAC)
Power consumption: about 50W
Communication method: RS-485
Communication rate: Various and configurable
Communication protocol: Various and configurable
Number of spare position: 64
Preset position accuracy ≤1°
Electrical connection: 2-core cable to connect power
Control signal cable: 3-core shielded cable
Video cable: Coaxial cable
Specifications
Material: Stainless steel 304 or 316L
Protection level: IP66
Window thickness: 8mm
Window area: Φ66mm
Number of outlet holes: 2
Outlet thread specification: M24x1.5
Installation mode: Semi-fixed gimbal, fixed bracket
Input voltage 127VAC, 50/60Hz
Input voltage range -25%~+10%
Working current ≤1A
Power consumption ≤30W
Infrared lamp projection distance 20 meters
Infrared lamp projection angle 30°/60°
Infrared light wavelength 830nm/950nm
Cold light projection distance 20 meters
Cold light projection angle 30°
Video signal output 1Vp-p±20% (75Ω)
Optical signal output wavelength 1310nm,
Single mode transmit power ≥-20dBm
Video signal output 1Vp-p±20% (75Ω)
Optical signal output wavelength 1310nm,
Single mode transmit power ≥-20dBm
Power supply 2-core terminal block
Video signal output 1 BNC socket
Network optical signal output 2 SC interfaces
