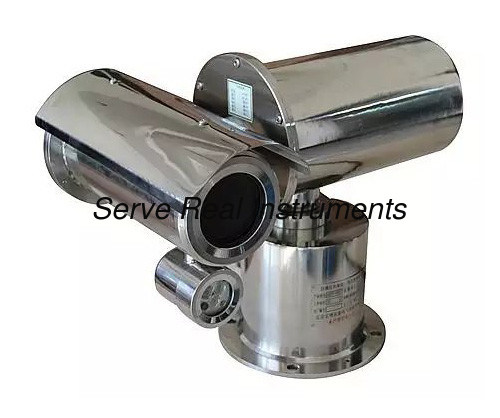

IP65 ExdⅡCT6 / DIP A20 TA T6 Explosion-proof IR analog integrated camera

Introduction

-Double certification, suitable for multiple environments
-The shell is made of stainless steel
-Upright installation
-Highly integrated protective cover, gimbal, decoder, camera
-Multiple control protocols, corresponding to multiple control systems
-Infrared LED illuminator, array LED illuminator or laser illuminator can be selected according to different site conditions, 350° horizontal rotation +90°～ -90° vertical rotation
-Protection grade reaches IP65
-Indoor and outdoor installation, all-weather use
-Adopt bracket installation or base installation

Specifications

Material Stainless steel 304 or 316L
Protection class IP65
Horizontal rotation 350° horizontal rotation
Vertical rotation +90° ～ -90°
Horizontal rotation speed 0.1°/S ～ 25°/S
Vertical rotation speed 0.1°/S ～ 25°/S
Unit weight 23Kg
Shipping weight 28Kg
Installation method Fixed bracket, base, column

Power supply 100VAC～240VAC, 50/60Hz
Working current < 1A
Power consumption about 100W
Communication method RS-485
Communication rate Various and configurable
Communication protocol compatible with many mainstream control protocols
Number of presets 128
Preset position accuracy ≤0.1°
Automatic heat (optional): start work when it is lower than -10℃
Infrared lamp function: automatic call up
Electrical connection: 3-core cable to connect power; 2-core cable connection control signal; Coaxial cable output video signal

Light source: Infrared LED/array LED/laser illuminator optional
Power consumption: LED about 20W; Laser illuminator according to specific projection distance
Projection distance: LED mode about 100 meters
Laser illuminator: 100~300 meters optional
Projection angle: Infrared LED 8°, Array LED 25°
Laser illuminator 2°～ 15°, according to the projection distance wavelength 850nm/808nm
Light control: Automatic
